MAXFORCE Water Booster Fireproofing

Water Booster Pump Assembly

4-Wheel cart is easy to transport featuring low water shutdown which prevents pump from running dry.

Can transfer water long distances when water supply is remote from work site. Also commonly used to provide consistent water flow to Continuous Mixer and spray applications of Isolatek Blaze Shield®.


Typical Applications

  • Fireproofing
  • Stucco/Plaster
  • Mortar
  • Concrete and Masonry
  • Grout
  • Floor Underlayment

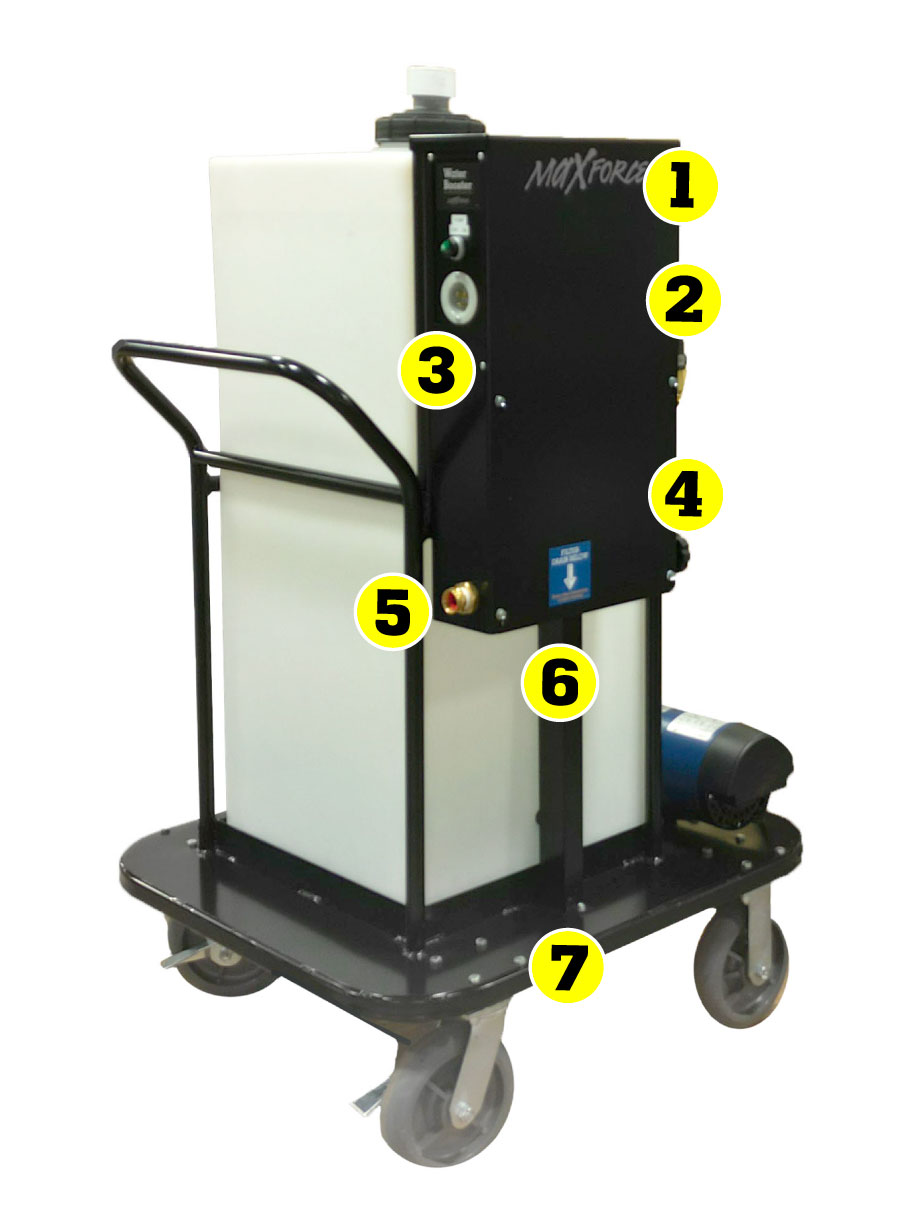

1) Overfill Protection

Secondary safety sensor prevents tank from overfilling

2) Magnetic Reed Float Switches

Quick fill system utilizes three durable and protected float switches

3) Single Surface Mount Power Input

Single power input reduces clutter of multiple power cords and provides single connection point that is high and dry off the floor

4) Easy Drain

Quickly and easily drain for winter transport

5) Inlet Water T-filter

Prevents contaminants and debris from entering system

6) Low Water Shutdown Feature

Prevents damage to pump by shutting down before running dry

7) Robust Steel Frame

Portable four wheel frame moves easily on rugged job sites

MaxForce Water Booster Call Outs
WaterBooster detail pic 5

Safety Recirculation System

Prevents pump from overheating

MaxForce Water Booster Detail 3
Water Booster Detail 2
Water Booster Detail 1

Ordering Information

Part No        Description
T10300-00   Complete Water Booster System
Comes assembled and ready to use, does not include outlet water hose


Premium Contractor Grade Sureline Water Hose
Male x Female brass garden hose threads. 150 psi working pressure

Part No        Hose     Diameter Length              Water Booster Hose
H10712-25    3/8″         25′
H10715-50    3/4″         50″
H10715-1X    3/4″        100′


Flow Rate: 6 gallons/minute
Power: 110 Volt, 15 amp
Tank Capacity: 55 gallons
Caster Wheels: 8″ Rubber caster (2 swivel, 2 rigid)

Height: 55″
Length: 36″
Width: 30″
Weight: 250 lbs dry

Built for the Way You Work

For more info on MaxForce fireproofing carts & equipment, purchasing options or to become a MaxForce dealer, call us at 1-888-4MAXFORCE (1-888-462-9367) 8am-5pm CST or email us using the link below!
