Integrated Skids
Heated Packages
Heated System for Viscous Coatings
Greatly reduce the viscosity of elastomeric coatings by heating the material with a non-restrictive tube-in-shell heat exchanger. Packages come with hook-up kit to easily install to your vehicle’s engine, or add hydronic heater kit to make your system self-contained (great for enclosed trailers).
- Proven 13 HP Honda engine
- 24” Tube-in-shell heat exchanger (single-pass)
- Heat exchanger hook-up kit
- Insulated and scuff jacketed spray hose
- Graco Heavy Duty Texture Gun (less restrictive than Silver Plus)
- Pressure gauge
- 4,000 PSI, 4.0 GPM
- Electric hose reel

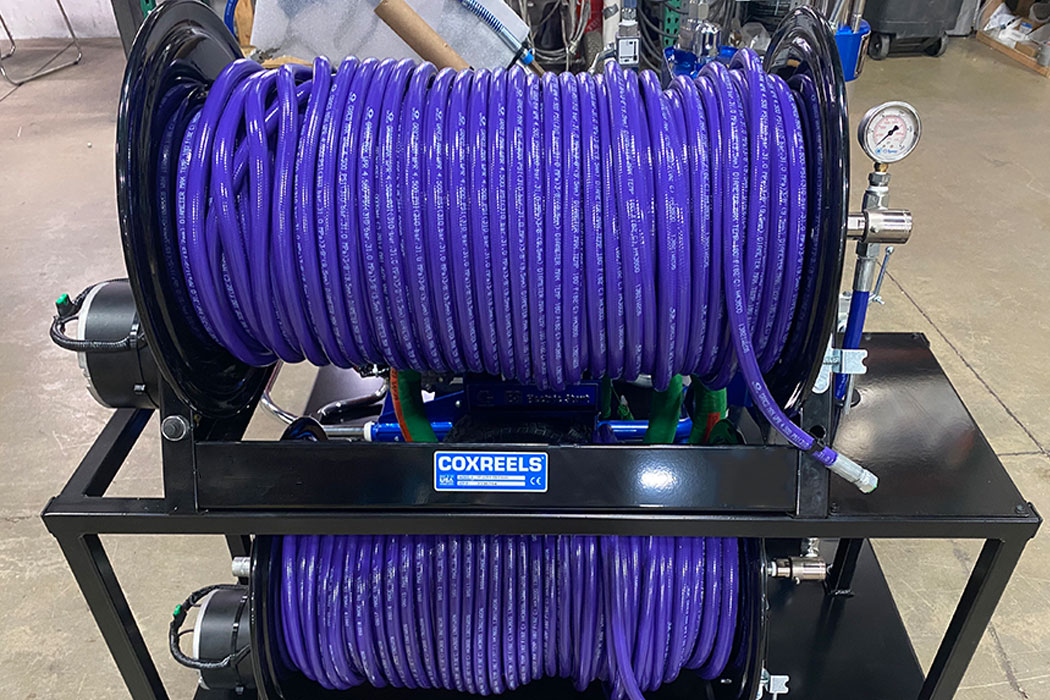

Heated System with Co-Spray

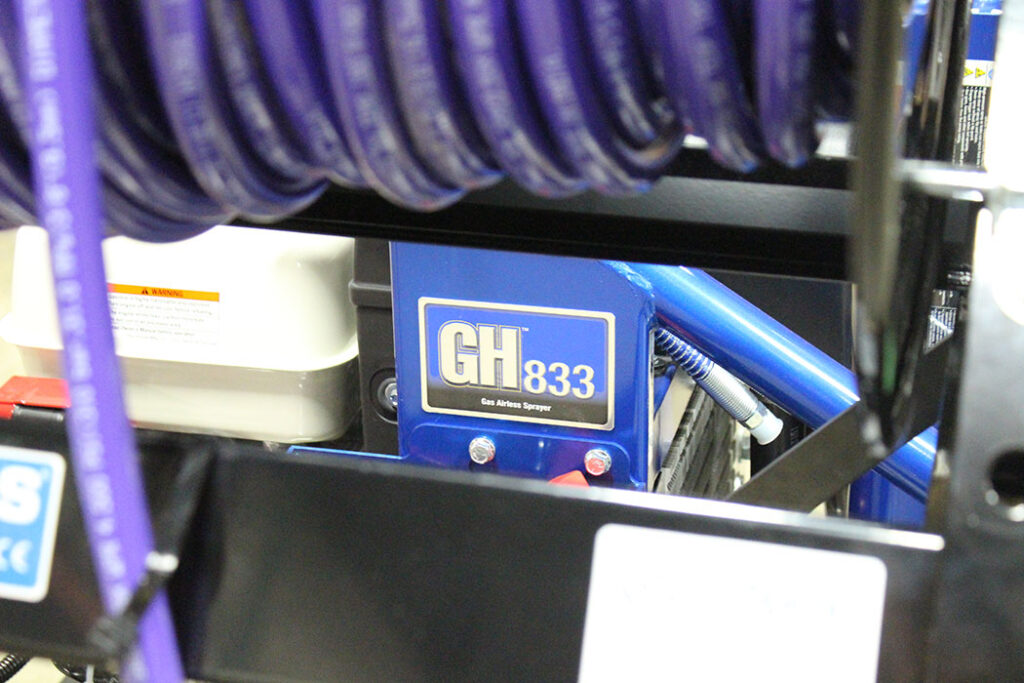

Same package as the Heated Premium Package but comes assembled with a Co-Spray System. Gallon tank with 12 V DC pump hooked up to the GH833’s battery. Dual lined hose bundle, with dual line electric hose reel, and Co-Spray gun are standard. Skid frame comes completely assembled making installation quick and easy.
- Proven 13 HP Honda engine
- 24” Tube-in-shell heat exchanger (single-pass)
- Heat exchanger hook-up kit
- Insulated and scuff jacketed dual line spray hose
- CJ Spray’s Co-Spray Silver Plus Gun
- Calcium tank and SHURflo pump
- Dual outlet electric hose reel
- Pressure gauge
- 4,000 PSI, 4.0 GPM
Non-Heated Packages
Non-Heated Basic & Premium Packages
The Premium Package includes all the necessities from the basic package, but also includes the accessories to increase production and protect your investment. The skid frame makes the system portable and comes completely assembled.
- Proven 13 HP Honda engine
- Electric Start
- 150 ft high-pressure spray hose
- Electric hose reel
- Graco Heavy Duty Texture Gun (less restrictive than Silver Plus)
- Pressure gauge
- 4,000 PSI, 4.0 GPM
- Upgraded Pressure Relief Valve
Non-Heated Premium Package w/ T2
The Premium Package w/ T2 Transfer Pump includes all the necessities from the basic package, but also includes the accessories to increase production and protect your investment.
when spraying even the most difficult coatings. The skid frame makes the system portable and comes completely assembled and the T2 allows thick coatings to be fed from 55-gallon drums.
- Proven 13 HP Honda engine
- Electric Start
- 200 ft high-pressure spray hose
- Electric hose reel
- Graco Heavy Duty Texture Gun (less restrictive than Silver Plus)
- Pressure gauge
- 4,000 PSI, 4.0 GPM
- Graco T2 Transfer Pump w/ 10′ Supply Hose
- Upgraded Pressure Relief Valve

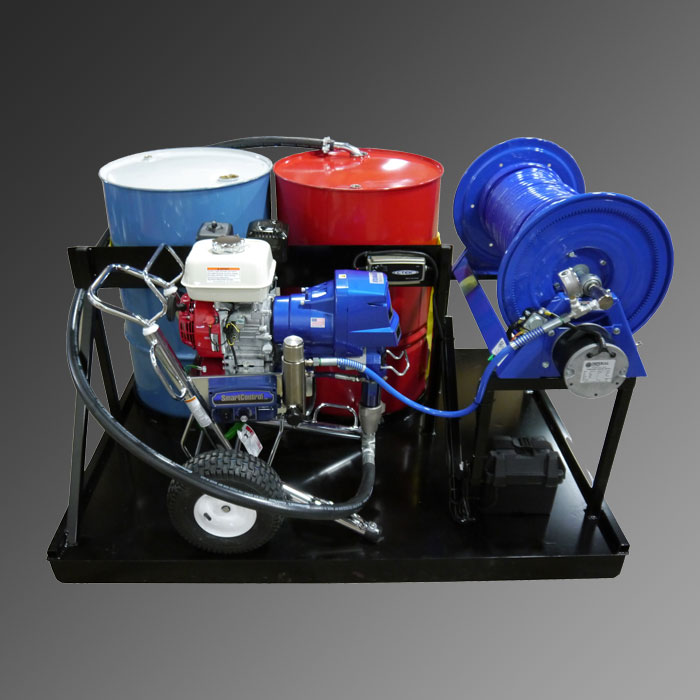

GMAX II 7900 Drum Skid Package
The proven GMAX II 7900 Standard mounted on metal skid frame with electric hose reel, battery with integrated charging station (110V) and E-Track with strap accommodating up to two 55-gallon drums.
- Graco GMAX II 7900 Standard
- Integrated electric hose reel
- Charging station (110V)
- 150 ft high-pressure spray hose
- Silver Plus spray gun
- E-Track w/ strap for two 55-gallon drums
- Metal skid frame w/ forklift pockets
