Big Payload in Small Packages that are Easy to Maneuver

Custom Outfitted Box Trucks to Your Specifications

Box trucks are easy to maneuver and can reach areas in rugged job sites that trailers cannot. They are capable of hauling heavy loads and are easy to park where space is limited. Contact MaxForce for truck requirements and your personalized custom quote.

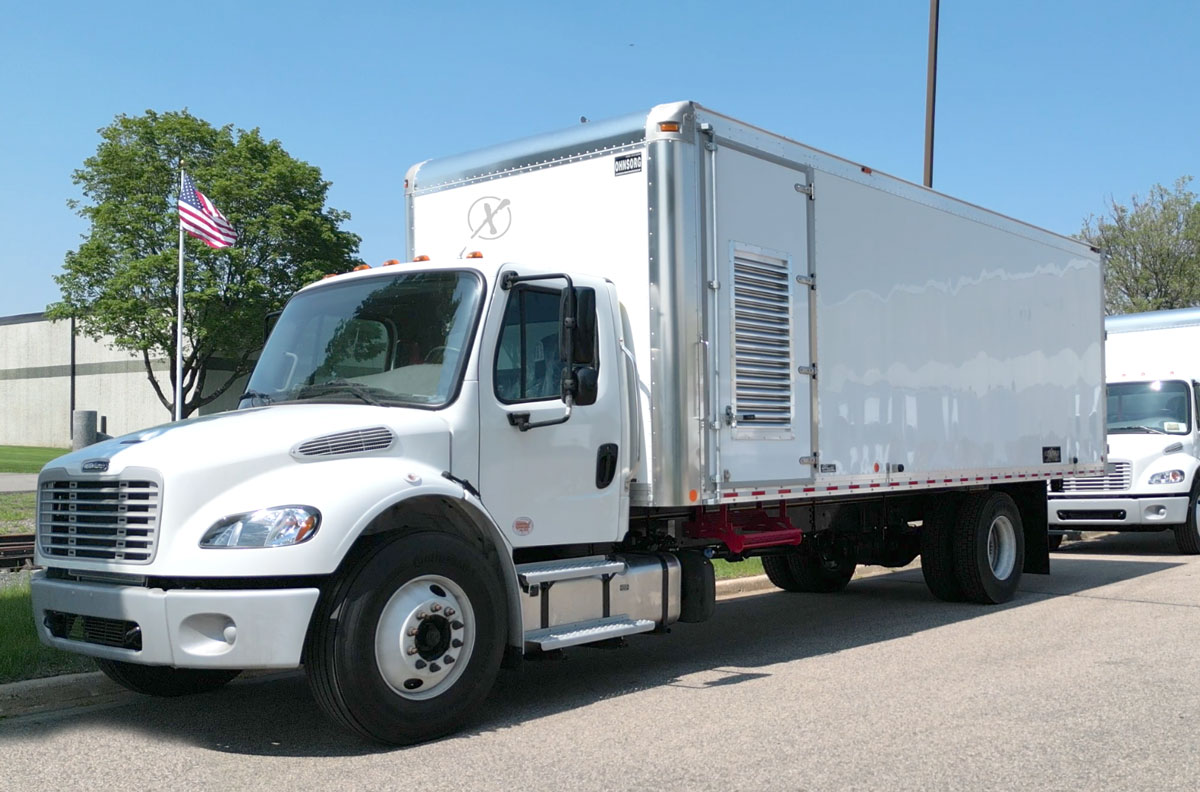

MaxForce Boxtruck exterior Spray Foam Rig
MaxForce Boxtruck Spray Foam Rig Render illustration

Standard Features/Equipment:

  • Urethane foam insulation sprayed in walls, ceiling and floor
  • White board walls and ceiling, with white aluminum trim accent for professional fit and finish look
  • Work bench, with vise, blow gun, grinder, overhead aluminum cabinet with light and 6 drawer tool box
  • Solvent and abrasion resistant rubber floor
  • Rubber floor in utility room
  • Shore power hook-up (110 volt)
  • Barrel brace system designed for two or three sets of material
  • Hose rack set-up for 410’ heated hose
  • Spare parts kit for selected spray gun
  • Two fire extinguishers, eye wash station and first-aid kit
  • Installing two louvers for generator

Optional Equipment:

  • Choose Your Graco or PMC Proportioner, Feed Pumps, Hose Length and Spray Gun
  • Dual proportioner layout available
  • Choose Your Generator, Air Compressor and Air
  • Drying Equipment
  • Heated material hoppers
  • Agitators
  • Heat System – AirTronic, 110V, 220V, Band Heaters
  • RAS (Respiratory Alarm Shutdown) System
  • Air Conditioner (includes 110V heat)
  • Fresh air supply system
  • Martech/Bullard Grade D Breathable Air System (Runs off compressor in trailer)
  • Allegro portable ambient air pump (110 volt)
  • Protective clothing and spill containment kits
  • Gun cleaners and gun cleaning kits
MaxForce Boxtruck Interior
CAS Compressor

Choose the Right Compressor

Like sizing a generator, the right compressor will be dependent on the air requirement (scfm) of your tools. Mobile spray rigs use several pieces of air operated equipment, all of which put a demand on the air compressor. The drum pumps, spray guns, agitators (optional), and fresh air supply systems (optional) all require compressed air. Other tools in your trade may also require compressed air. For example scarifiers used in the foam industry can require up to 30 scfm of air.

Another consideration is space and weight. MaxForce offers two types of compressors: Electric driven piston compressors and a belt driven screw compressor mounted on the generator.

Electric compressors are cost effective and are available on vertical or horizontal mounted tanks. Vertical tanks are used in our 16 ft., 20 ft. and box truck models —  the horizontal tanks are mounted above the cab-over of our gooseneck trailers.

Our screw compressor option is mounted on our 40 kW generator and runs directly off the diesel engine — so there is no electrical requirement. In most applications a tank is not required saving weight and space making the screw compressor a great value option for 20 ft. bumper pull trailers.

MaxForce Boxtruck Features
Boxtruck Generator Room

MaxForce Box Truck 360 Panoramic View

Learn why MaxForce Trailers are the best on the market!

Call us at 1-888-4MAXFORCE 8am-5pm CST or click the link below for purchasing options or to learn how to become a MaxForce trailer distributor!
