Built Solid to Support Equipment and Materials

Heavy-Duty Construction for Long Lasting Performance

Our Premium 16-ft Bumper-Pull trailer is designed to last and take a beating throughout the years. The next step-up from our Eco Rig, the 16-ft Bumper Pull trailer is built for professionals in the urethane foam insulation market that want their Spray Rig to perform when called upon again and again. MaxForce custom built trailers meet your exact spraying needs and keep you up and running for years to come.

MaxForce 16ft Bumper Trailer
16ft Bumper Trailer for Spray Foam Applications

Standard Features/Equipment:

  • 110 V Shore power hook-up
  • Hose rack
  • 48 in. curb-side door with hose hatch
  • Ramp rear door
  • Fire extinguisher, first-aid kit and eyewash station
  • Rubber floor, white board walls, white ceiling board, and premium white aluminum trim throughout trailer
  • Tandem axles (5,200 GVWR)
  • 7.5 ft. interior heights
  • LED lights and accents
  • RV style locks and latches
  • Bogey wheels at rear of trailer to prevent damage
  • Trailers from Haul-About with 3 year limited warranty
  • Graco Reactor E-20, Titan FR28, PMC PH2
  • Graco T:1 Feed Pumps
  • Graco Fusion AP guns (other models available)
  • 160 ft. heated hose standard
  • 22 kW gasoline generator
  • 5 HP gas compressor
  • 3 Stage Desiccant DryAire System
  • Barrel brace system for two sets of materials
  • Work bench, with vise, blow gun and overhead aluminum premium cabinet
  • Urethane foam insulated walls and ceiling

Optional Equipment:

  • Electric refrigerated air drier upgrade
  • Heat Systems – AirTronic, 110V, 240V, Band Heaters
  • Air Conditioner (with 110V heat)
  • Upgrade to 210 ft. of heated hose
  • Fresh air supply systems
  • Protective clothing and spill containment
  • Gun cleaners and gun cleaning kits
16ft MaxForce Trailer for Spray Foam and Coatings

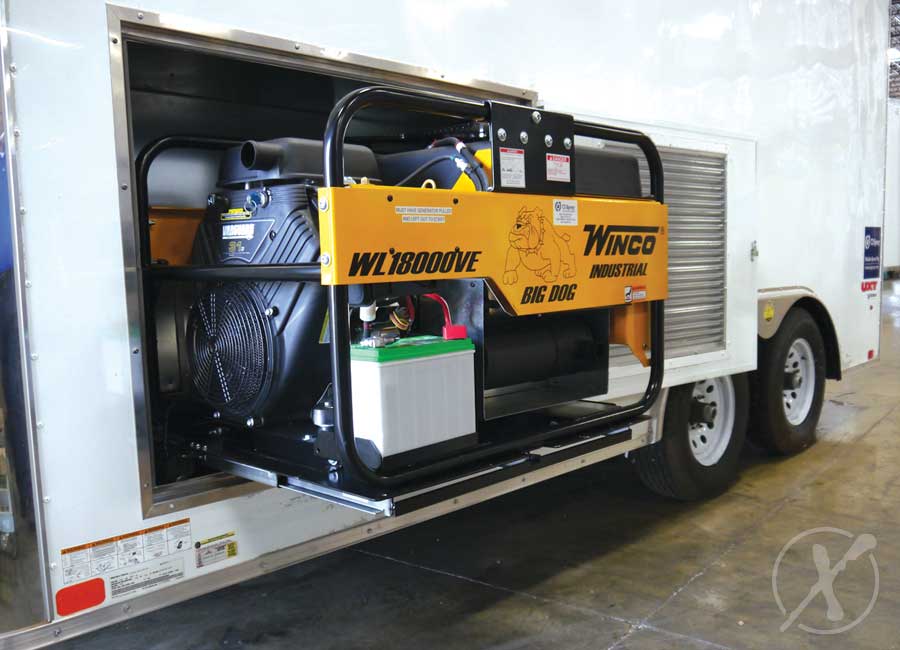

MaxForce Trailer Doghouse

Welcome to the Doghouse

OSHA requires all internal combustion engines to be in a separate room away from the work environment. Welcome to the doghouse. This layout allows a sleek 16 foot economy trailer to be as roomy as a 20 foot premium trailer without the cost, added maneuverability issues or the price tag of a “big rig”.

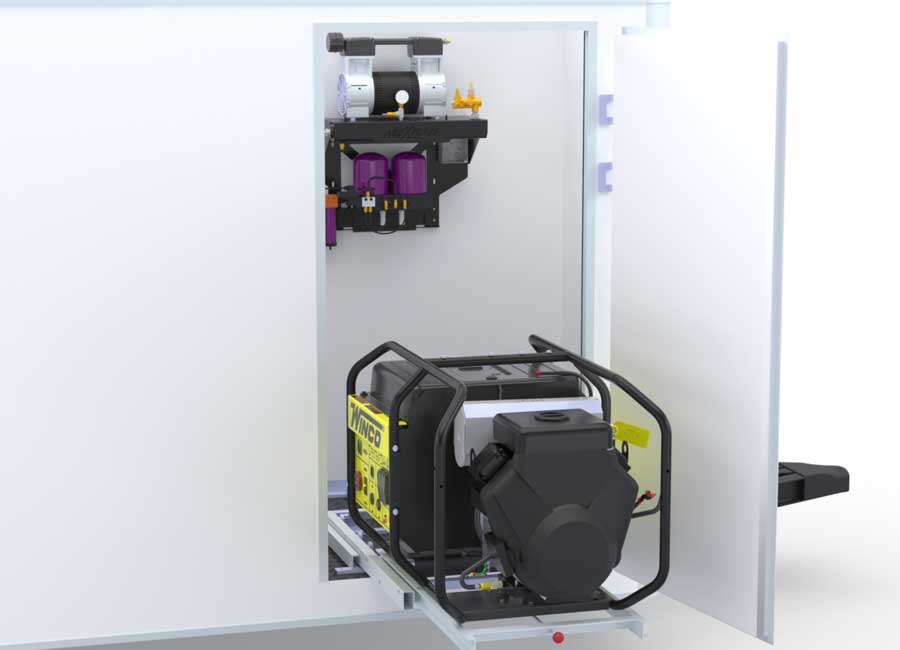

Gas Generator

Gas operated “portable” generators offer low cost of entry, but less durability. The Dog House allows you to easily pull out the generator on the EZ Slide and operate the generator outside the trailer. This gives you OSHA compliance and gives extra cooling for maximum generator life.

MaxForce Trailer Workbench

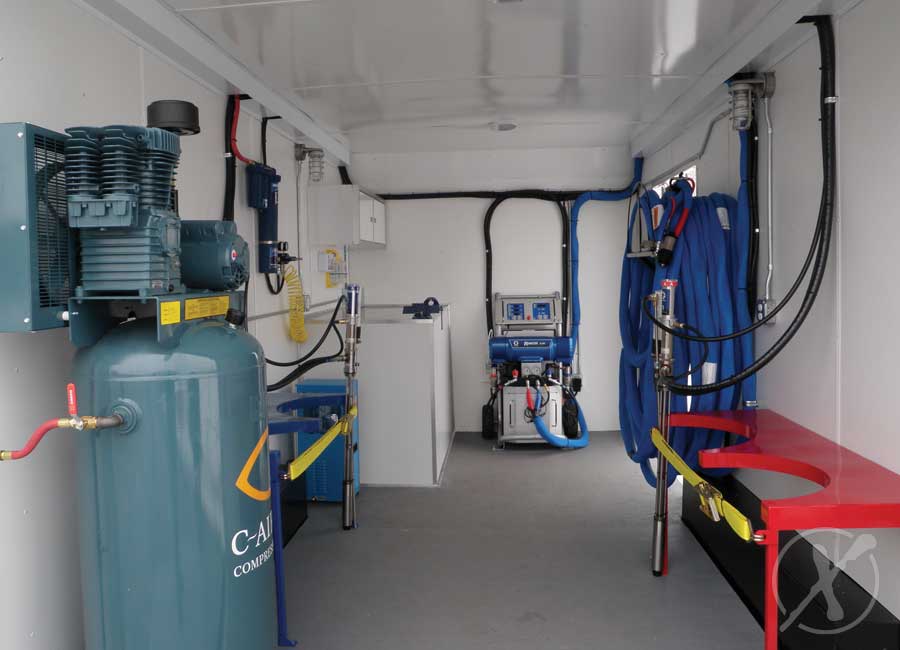

MaxForce Trailer Interior


Learn more about our Premium MaxForce Trailers
