MaxForce ACH Series

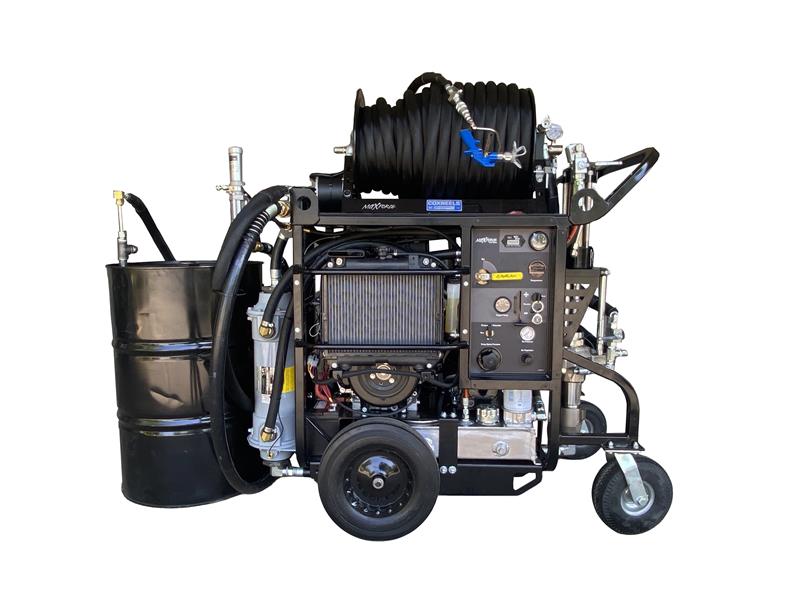

Gas GH4040ACH:

For the most demanding contractor that needs high pressure and flow, the MaxForce GH4040ACH utilize Graco’s time tested Viscount II Hydraulic motor and Extreme Lowers. Powered by large twin cylinder Kohler engines you will not find a more powerful sprayer in the field. This system also heats the material utilizing the coolant from the engine. Warmer material is thinning and requires less pressure to spray.

• GH4030ACH: 4,000 psi, 3.0 gpm, with Heat
• Integrated 13.1 CFM Air Compressor for use with Graco 1:1 FastFlo Feed Pump
• Electric Hose Reel for up to 200 ft insulated and scuff-jacketed spray hose
• 24 HP Twin Cylinder Liquid-Cooled engine that also heats 24″ single pass heat exchanger that can increase material temperature 100°F
• Optional Calcium Chloride (Co-Spray) kit
• Ordering InformationT10456-00 GH4040ACH, FastFlo 1:1 Stick Pump, 200′ Scuff Jacketed/Insulated Hose (100 x 1/2, 100 x 3/8), HD Texture Gun, HD Swivel, XHD Tip and Guard
• Dimensions: 31″ w x 51″ long x 56″ tall

Ordering Information

T10456-00
GH4040ACH, FastFlo 1:1 Stick Pump, 200′ Scuff Jacketed/Insulated
Hose (100 x 1/2, 100 x 3/8), HD Texture Gun, HD Swivel, XHD Tip and Guard

Electric EH4020ACH/EH4030ACH/EH6520AC:

Experience the reliability of electric motors. The EH Series requires a small gas driven generator that many contractors already own for their welding machines. Integrated electric heat system helps warm material so you can spray at lower pressures and extend your spray season.

• EH4020ACH: 4,000 psi, 2.0 gpm, with Heat
• EH4030ACH: 4,000 psi, 3.0 gpm, with Heat
• EH6520AC: 6,500 psi, 2.0 gpm, no Heat
• Integrated 6.5 CFM Air Compressor for use with Graco T2 Feed Pump
• Electric Hose Reel for up to 200 ft of insulated and scuff jacketed spray hose (ACH models only)
• 5 HP (4020) or 10 HP (4030/6520) Electric 230 V, 1-PH Motor
• Intuitive control panel for easy operation
• 4020/4030 Digital heat control is “set and forget”
• Optional Calcium Chloride (Co-Spray) kit (4020/4030)
• Dimensions: 31″ w x 51″ long x 56″ tall
• Weight: 755lbs

Ordering Information

T10442-00
EH4020ACH, T2 Stick Pump, 200′ Scuff Jacketed/Insulated Hose (100 x 1/2, 100 x 3/8), HD Texture Gun, HD Swivel, XHD Tip and Guard

T10442-01
EH4030ACH, T2 Stick Pump, 200′ Scuff Jacketed/Insulated Hose (100 x 1/2, 100 x 3/8), HD Texture Gun, HD Swivel, XHD Tip and Guard

T10442-02
EH6520AC, T2 Stick Pump, 260′ Hose (200 x 3/4, 50 x 1/2, 10 x 3/8), Binks 75 Gun, HD Swivel, 18″ High Pressure Gun Extension, 180° Swivel, XHD Tip and Guard (no reel)
