MaxForce ACH Coatings Sprayer for Air Barrier Roofing and Waterproofing Applications
MaxForce ACH Logo Roofing Waterproofing Air Barrier

Electric EH4020ACH / EH4030ACH / EH6520AC

Heat the material utilizing the coolant from the engine.

Similar to the AC sytem, but designed for material requiring heat that is stored in drums.
Who’s it for: The residential waterproofing and commercial air/vapor barrier contractor and roofing contractor where heating the product is required

MaxForce Sprayer Highlights

  • No Installation required
  • Easily move around job sites
  • No truck idle while spraying
  • Transport to job site in truck or trailer
  • Different pressure and flow rates available
  • Enclosure paneling protects equipment
  • Easy operation with intuitive control panel
  • Calcium Chloride (CoSpray) kit optional
MaxForce Waterproofing Equipment

Run Off Shore Power to Your TPO Generator

Power Requirements

Winco Generator for Spray Equipment

EH4020ACH
When using heater: 50 Amps, 230 V, 1-PH
When not using heat: 39 Amps, 230 V, 1-PH
Recommended generator: 12kW
T10552-00

EH4030ACH/EH7020AC
When using heater: 68 Amps, 230 V, 1-PH
When not using heat: 55 Amps, 230 V, 1-PH
Recommended generator: 18kW
U90717

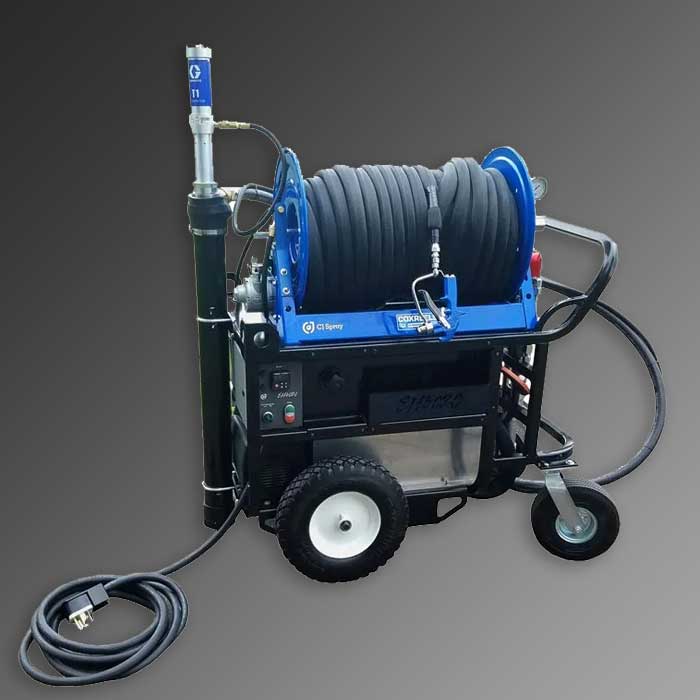

MaxForce ACH Spray Equipment

Electric EH4020ACH/EH4030ACH/EH6520AC:

Experience the reliability of electric motors. The EH Series requires a small gas driven generator that many contractors already own for their welding machines. Integrated electric heat system helps warm material so you can spray at lower pressures and extend your spray season.

  • EH4020ACH: 4,000 psi, 2.0 gpm, with Heat
  • EH4030ACH: 4,000 psi, 3.0 gpm, with Heat
  • EH6520AC: 6,500 psi, 2.0 gpm, no Heat
  • Integrated 6.5 CFM Air Compressor for use with Graco T2 Feed Pump
  • Electric Hose Reel for up to 200 ft of insulated and scuff jacketed spray hose (ACH models only)
  • 5 HP (4020) or 10 HP (4030/6520) Electric 230 V, 1-PH Motor
  • Intuitive control panel for easy operation
  • 4020/4030 Digital heat control is “set and forget”
  • Optional Calcium Chloride (Co-Spray) kit (4020/4030)
  • Dimensions: 31″ w x 51″ long x 56″ tall
  • Weight: 755lbs



Ordering Information

T10442-00
 EH4020ACH, T2 Stick Pump, 200′ Scuff Jacketed/Insulated Hose (100 x 1/2, 100 x 3/8), HD Texture Gun, HD Swivel, XHD Tip and Guard

T10442-01
EH4030ACH, T2 Stick Pump, 200′ Scuff Jacketed/Insulated Hose (100 x 1/2, 100 x 3/8), HD Texture Gun, HD Swivel, XHD Tip and Guard

T10442-02
EH6520AC, T2 Stick Pump, 260′ Hose (200 x 3/4, 50 x 1/2, 10 x 3/8), Binks 75 Gun, HD Swivel, 18″ High Pressure Gun Extension, 180° Swivel, XHD Tip and Guard (no reel)
