MaxForce AC Series Coatings Sprayer Waterproofing Roofing Equipment
MaxForce AC Series Coatings Logo Waterproofing Roofing Air Barrier

Air Compressor for Operating 55-Gallon Drum Feed Pump

Designed for nonheated material stored in drums where you need a extra pump to aid in proper loading of the material because it is to thick to properly load from just the standard pump.
Who’s it for: The commercial air/vapor barrier and commercial roofing markets

MaxForce Sprayer Highlights

  • No Installation required
  • Easily move around job sites
  • No truck idle while spraying
  • Transport to job site in truck or trailer
  • Different pressure and flow rates available
  • Enclosure paneling protects equipment
  • Easy operation with intuitive control panel
  • Calcium Chloride (CoSpray) kit optional

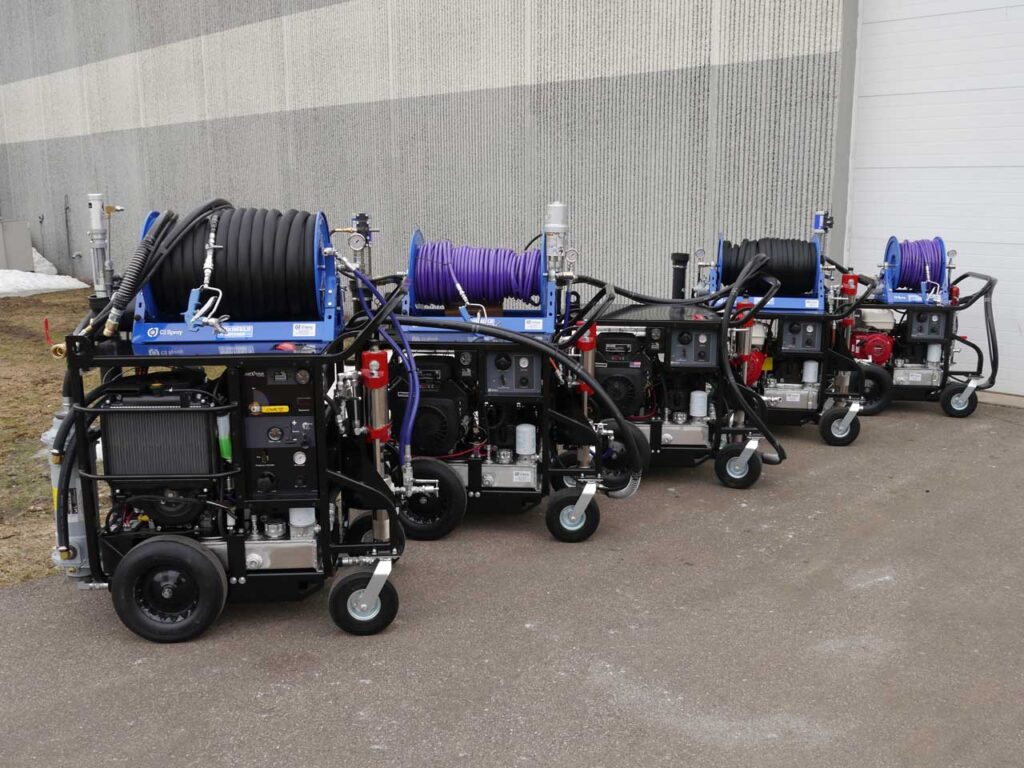

MaxForce AC Lineup
MaxForce AC Series Application

MaxForce AC Series Integrates Air Compressor for Operating 55-Gallon Drum Feed Pump

Designed with the commercial contractor in mind spraying roof coatings from 55-gallon drums. The AC Series use large gas or electric driven hydraulic pumps that also operate an air compressor for the feed pump. These new compact packages are easy to move around a job site. Built in fly hooks, fork pockets and no flat tires give contractors many options in the field. Built in tie down brackets make it easy to secure during operation or installing into a truck or trailer.

MaxForce GH4020 Sprayer

MaxForce GH4020AC Package:

The ideal pump for spraying acrylic roof coatings. The 2.0 gpm pump is more than capable spraying up to a .047 tip. Larger 3.0 gallon per minute pumps became popular because contractors needed them for the increased suction from a 55 gallon drum. Using a feed pump eliminates that need and provides a smaller more portable system.

  • GH4020AC: 4,000 psi, 2.0 gpm, No Heat
  • Integrated 13.1 CFM Air Compressor for use with Graco T2 Feed Pump
  • Pneumatic Hose Reel for up to 300 ft spray hose
  • 13 HP Single Cylinder Air-Cooled Honda motor
  • Optional Calcium Chloride (Co-Spray) kit
  • Dimensions: 31″ w x 51″ long x 56″ tall
  • Weight: 610

Ordering Information

T10443-00
GH4020AC, T2 Stick Pump, 200′ Hose (100 x 1/2, 100 x 3/8), HD Texture Gun, HD Swivel, XHD Tip and Guard

MaxForce GH4030AC Spray Equipment

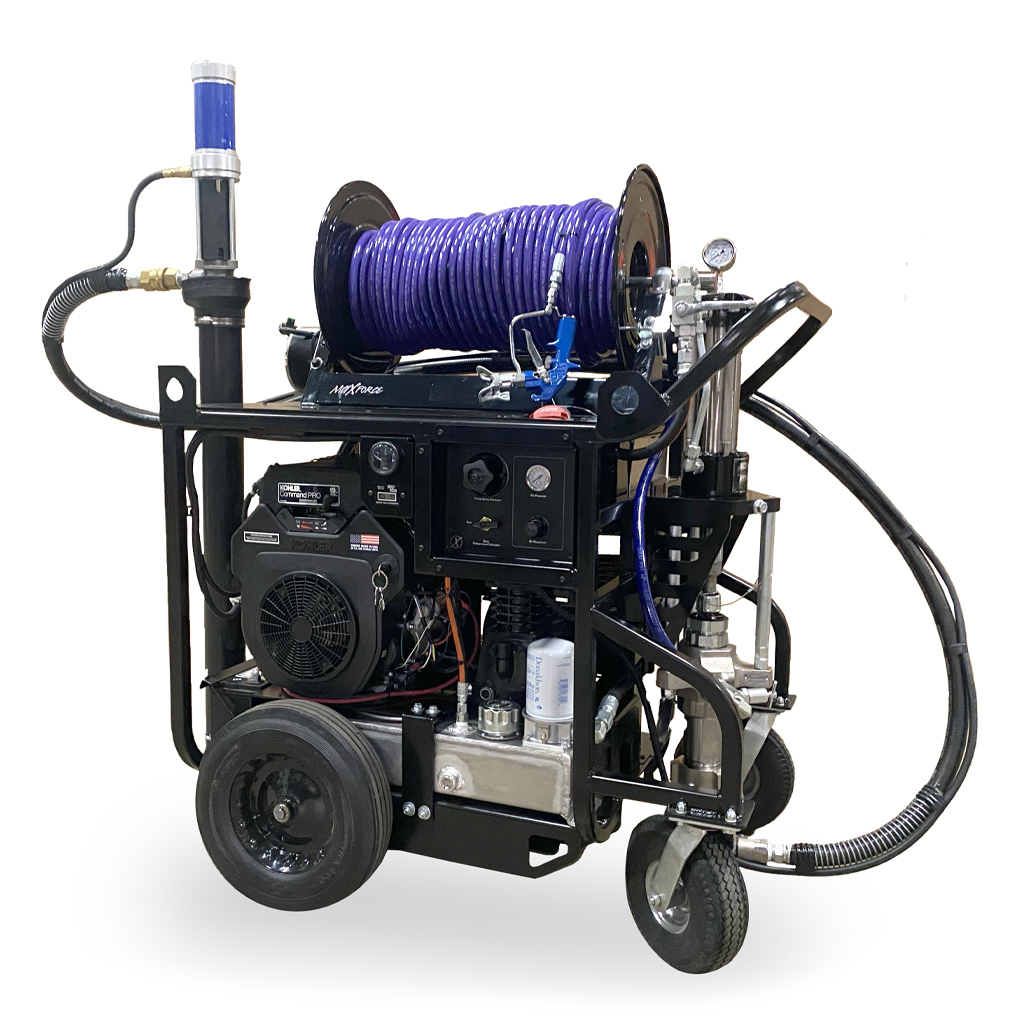

MaxForce GH4040AC Package:

For the most demanding contractor that needs high pressure and flow, the MaxForce GH4040AC utilize Titan/SpeeFlo’s time tested hydraulic motor and lowers. Powered by large twin cylinder Kohler engines you will not find a more powerful sprayer in the field.

  • GH4040AC: 4,000 psi, 3.0 gpm, No Heat
  • Integrated 13.1 CFM Air Compressor for use with Graco T2
  • Electric Hose Reel for up to 300 ft spray hose
  • Dimensions: 31″ w x 51″ long x 56″ tall
  • 18 HP Twin Cylinder Air-Cooled motor
  • Optional Calcium Chloride (Co-Spray) kit

Ordering Information

T10449-00
GH4040AC, T2 Stick Pump, 200′ Hose (100 x 1/2, 100 x 3/8), HD Texture Gun, HD Swivel, XHD Tip and Guard

MaxForce 7225AC with Hose

MaxForce GH7225AC Package:

Based on the popular MaxForce GH4030AC, this sprayer is designed with the commercial roofing contractor in mind. If you are spraying silicone from 55-gallon drums, this unit is THE turn-key, integrated solution for you. Like the other sprayers in the AC series, the GH7225AC uses a large gas driven Graco hydraulic pump that also operates the on-board air compressor for the 5:1 Monark feed pump. With built-in fly hooks, fork pockets and no flat tires, this portable unit easily goes where you need it to be.

  • GH7225 AC: 7,250 psi, 2.5 gpm
  • Integrated 13.1 CFM Air Compressor for use with Monark 5:1 Feed Pump
  • Dimensions: 31″ w x 51″ long x 56″ tall
  • 18 HP Twin Cylinder Air-Cooled motor

Ordering Information

T10449-72
GH7225AC, Monark 5:1 Stick Pump, 260′ Hose (200 x 3/4, 50 x 1/2, 10 x 3/8), Graco Silver Plus HP gun, HD Swivel, 18″ High Pressure Gun Extension, 180° Swivel, XHD Tip and Guard



Ready to purchase or become a MaxForce distributor?

The MaxForce AC Series is built specifically for commercial air/vapor barrier and commercial roofing markets. Call us today at 1-888-4MAXFORCE (1-888-462-9367) or click the link below for more info!
