Turn-Key Mobile Carts

Complete Portable Systems – Just Add Electrical Power

Ideal system for commercial contractors. Designed to operate when mounted in truck or trailer, but can easily be removed when spraying high rises, or large industrial buildings. Heavy-duty 8-inch poly wheels allow for easy mobility, with 4-way fork pockets and integrated lift hooks to fly skyward. Integrated air compressor, air drying equipment, and controls make operation intuitive and in one place. Choose high pressure models for polyurea or low pressure for spray foam applications.

MaxForce HXP3 Mobile Cart

Large Compressor Cart Model

Cart includes high output air compressor for operating pneumatic feed pumps and high pressure breathing system. This allows applicators to wear cooling tubes and hoods for safe and comfortable operation.



Large Compressor Mobile Spray Foam Cart

Standard Features/Equipment:

  • 19 CFM Hydro-Vane Compressor
  • Electric Refrigerated Air drier
  • Easy to use Air Distribution Box regulates air to transfer pumps and spray gun
  • Integrated four-way fork pockets & fly hooks
  • Integrated breathable hose wrap
  • Integrated hose hanger for up to 420’ of heated hose
  • Manifold and heated hose circulation kit

Optional Equipment:

  • Choose any Graco R2 or R3 Proportioner (electric or hydraulic)
  • Electric or pneumatic feed pumps
  • 60 to 420 ft of heated hose
  • Electric or pneumatic Agitator
  • Breathable Air Systems (Bullard, Martech)
  • Respiratory Alarm Shutoff (with breathing system)

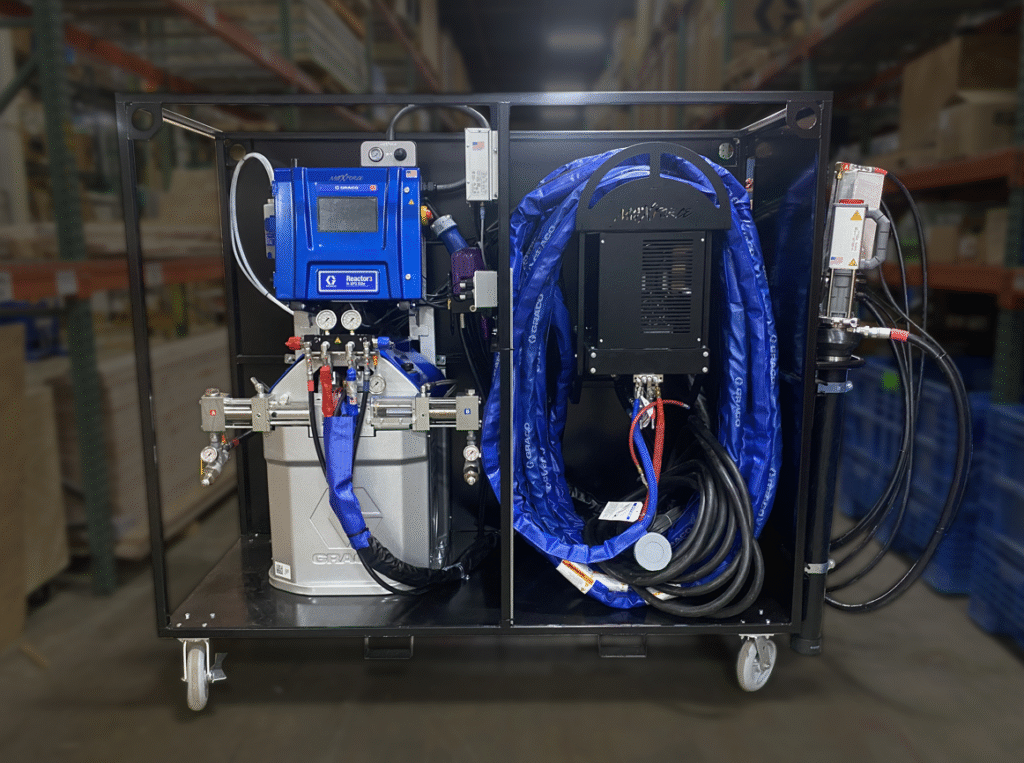

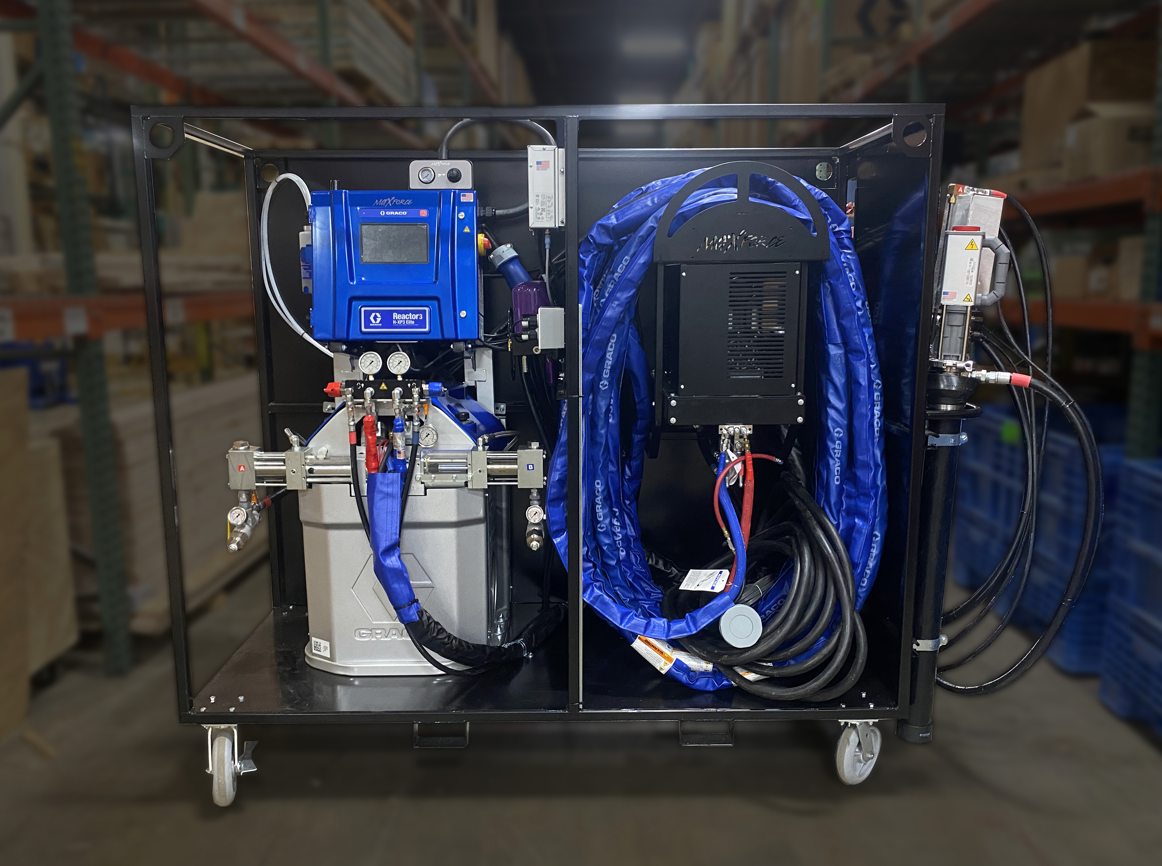

Small Compressor Cart Model

These cart packages utilize electric feed pump technology reducing compressed air consumption. The smaller compressor produces less heat, making them ideal for confined spaces such as trailers and trucks. Small compressor carts are not capable of running high pressure breathing systems.



Small Compressor Spray Foam Cart

Standard Equipment

  • Graco R3 Reactor with Core 1 Feed Pumps
  • MaxForce Electric Air Compressor (6 cfm)
  • Tsunami PURE Regenerative Dryer
  • Integrated four-way fork pockets
  • Integrated Hose Hanger for up to 420’ of Heated Hose
  • Manifold and Heated Hose Circulation Kit

Optional Equipment:

  • Electric Agitator



Optional Enclosure Package

For additional security on commercial job sites, choose the optional enclosure package with locking doors. This must be added at the time of purchase and cannot be added as an accessory later.



Optional Enclosed Spray Foam Cart 2
Optional Enclosed Spray Foam Cart
